KEE Infra LLP designs and manufactures module mounting structures for ground-mount solar plants of every size, from fixed tilt and seasonal tilt systems to single axis trackers and car ports.
KEE Infra LLP is the structures and infrastructure company of the Kamaxi Electrical Engineers group. Kamaxi was founded in 2012 as a Government-approved electrical contractor delivering EPC (Engineering, Procurement & Construction) and renewable energy projects. It started with underground cable-laying projects for DGVCL and grew into a trusted partner for commercial and industrial solar power.
KEE Infra combines integrated manufacturing with an expert in-house design team. That makes us a competitive, reliable single-source MMS supplier for ground-mount PV projects of any size. We handle custom requirements, and our quick delivery times set us apart.
To deliver reliable, technology-driven electrical and solar solutions with exceptional quality and service.
To become a leading renewable energy and EPC company driving sustainable growth through innovation and excellence.
Module mounting structures and power-evacuation hardware, engineered for Indian site conditions and built for 25+ years in the field.
Proven fixed-tilt ground-mount structures in portrait 1P and 2P configurations. Available in Magsure, Magnelis, AZM150, HDGI, Galvalume and POSMAC, with corrosion resistance up to C5 and lower labour costs on site.
View Technical Specs →Adjust the tilt 2–3 times a year for 4–6% more energy than fixed tilt, with no added weight or maintenance.
Learn More →Precise alignment and optimal energy capture. Tilt changes by rotating actuators, without touching the module or twisting the structure.
Enquire →Trackers that follow the sun across the day for maximum yield on utility-scale plants.
Enquire →Dual-purpose structures that generate clean power while giving vehicles shaded parking.
Enquire →Heavy-duty galvanised high-tension line hardware and transmission infrastructure for low-loss power evacuation from solar plants to the grid.
Enquire →Inverter stands with canopy, earthing strips, fence brackets, barbed wire and zinc-flake coated fasteners.

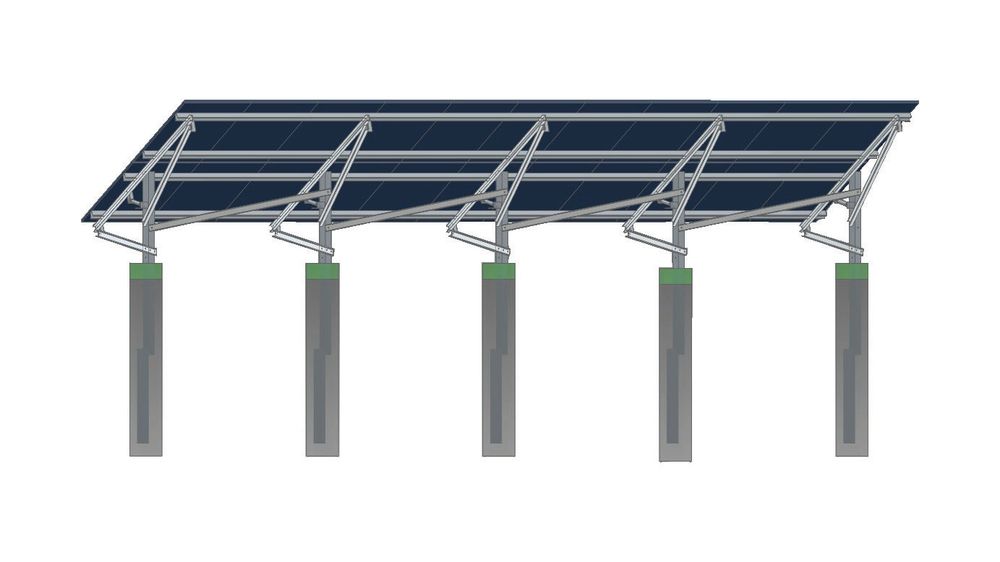

View Accessories →The Seasonal Tilt Module Mounting Structure maximises solar production by adjusting the panel tilt angle to follow the sun's changing path through the year.
Adjusting the tilt 2–3 times a year increases energy output by 4–6% compared to fixed systems.
A small capex increase leads to long-term gains through better energy production.
A cost-effective alternative to complex tracking systems, with improved efficiency.
Manual tilt adjustment is easy and needs minimal upkeep.
Estimate the extra energy and revenue your plant could earn by switching to KEE Infra seasonal tilt structures.
Indicative estimate only, with no degradation or escalation applied. Our design team will share a site-specific yield study.

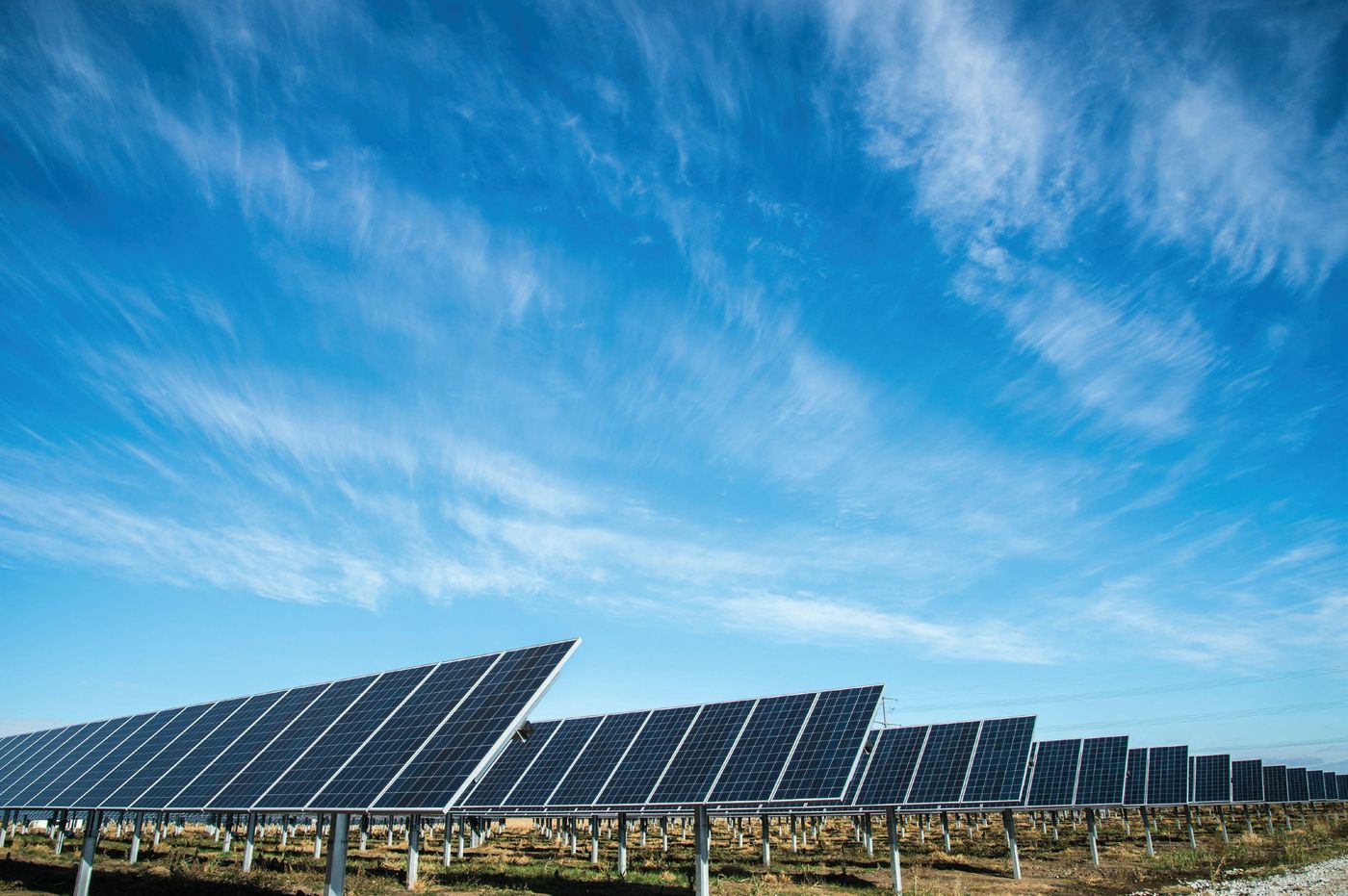

Ground-mounted solar structures have been the go-to solution for over a decade, powering more than 1.5 GW of projects worldwide. KEE Infra delivers robust, reliable systems built to last.

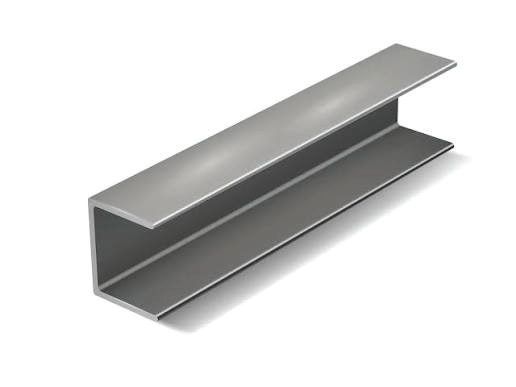

C Section
C-Lip Section

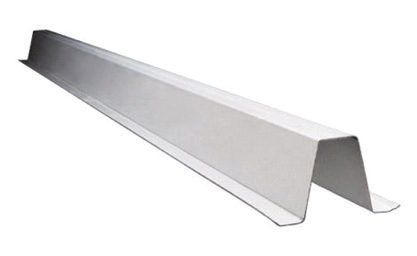

Hat Purlin

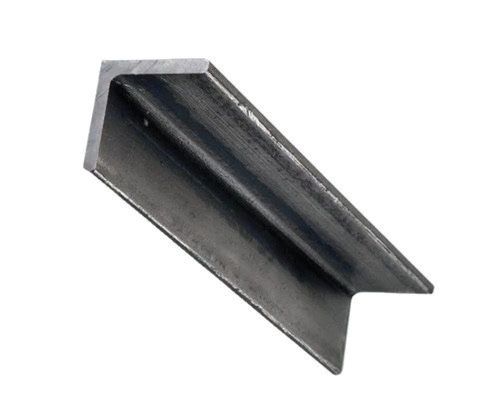

L Section| Type of Structure | Fixed Tilt & Manual Tilt |
|---|---|
| Module Orientation | Portrait (1P & 2P) |
| Corrosion Resistance | Up to C5 |
| Structural Material | Magsure / Magnelis / AZM150 / HDGI / Galvalume / POSMAC |
| Fasteners | Self-locking 8.8 grade, zinc-flake coated |
| Cost-Effective | Reduced labour expenses on site |
| Production Capacity | 50,000 tons · 3 GW per year |
Fixed tilt structure: general arrangement drawing
Everything needed to complete the plant, supplied with the structure.
With canopy for protection
Galvanised, for electrical grounding
Wire fence top brackets
Perimeter security
Zinc-flake coating
Assembly L
50,000 tons / 3 GW of annual capacity, with in-house fabrication and quality control.
Short lead times keep your project on schedule, from small plants to utility scale.
Pre-engineered, pre-punched members with self-locking fasteners mean faster erection.
Site-specific structural design, wind-load analysis and custom solutions.
Corrosion resistance up to C5 with premium coated steels for 25+ years of field life.
On-site guidance and after-sales support from the engineering team behind your design.
Site data, soil report and layout review.
Wind-load calculation, BOM and GA drawings.
Roll-forming, punching and fabrication in-house.
Coating thickness and dimensional inspection.
On-time delivery with installation guidance.
Placeholder: add real project names, capacity, location and site photos
Location, Gujarat
Location, Rajasthan
Location, Gujarat
Share your layout and get a structure design and quote from our team.
